SURRON LIGHT BEE X 2024



SURRON LIGHT BEE X – SURRON X New



The SurRun Light Bee X has become a worldwide phenomenon due to its accessibility, edgy design, zero emissions, and noise-free ride. Its lightweight aluminum frame is paired with off-road suspension specifically designed for this electric platform. Easy to handle and maneuver, even for newer riders, the Light Bee X also impresses experienced off-road enthusiasts with its capability to tackle challenging obstacles on the trails.

With a climbing ability of over 45 degrees, up to 100 km of range, and a short charge time, the SurRun Light Bee X promises endless fun in the dirt.

With 6 kW of electric power, a 75 km cruising range, a top speed of 75 km/h, and a curb weight of just 56 kg, the Surron Light Bee X represents premium electric technology.



NEW FOR 2025

• 60V/40Ah Battery: Provides powerful performance and extended range.
• New Battery Connector: Ensures secure and efficient power delivery.
• New Ride-by-Wire Throttle with Dual Hall Sensor: Offers precise control and enhanced riding experience.
• Brand New Paint Process: Delivers a stunning finish with improved durability.
• Revised, Stronger Handlebar Mount: Increases stability and durability for rugged trails.
• Steering Stem Strengthening Ring: Adds extra strength to the steering mechanism for better handling.

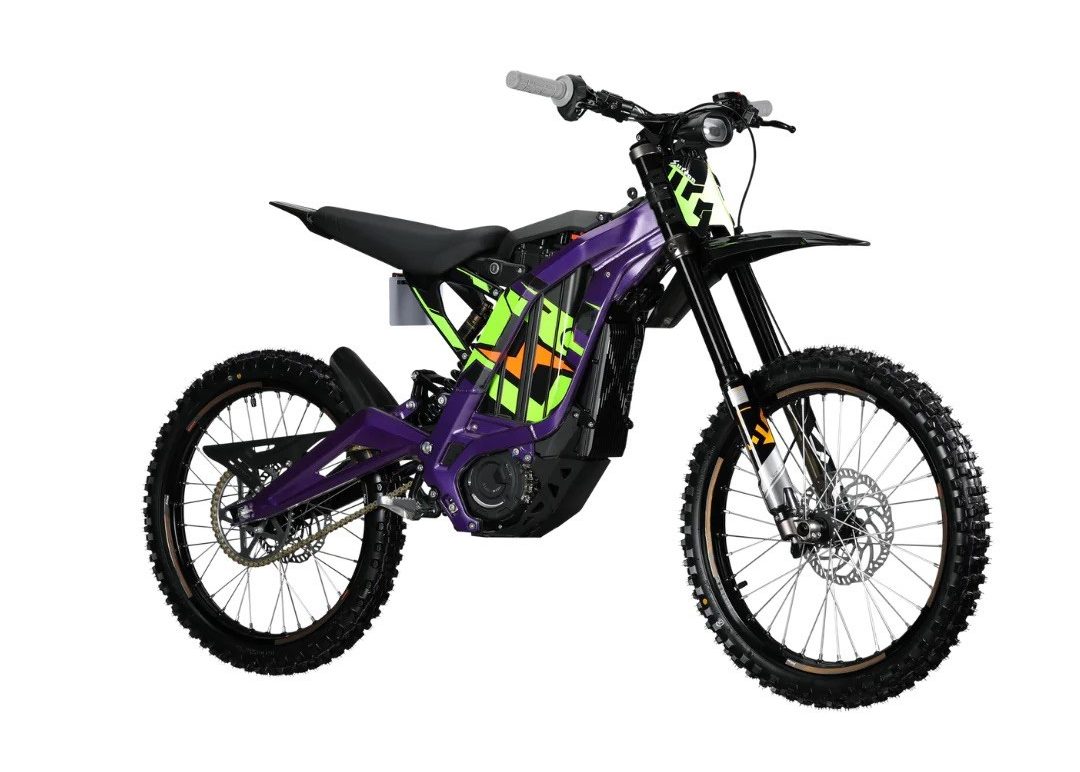

• Limited-Edition Phantom Purple Color: Stand out with this unique and stylish option.
• 17-Digit VIN and NVIS with All Models: Facilitates easy registration and compliance with regulations.

KEY FEATURES

• 6,000W Peak Power: Delivers impressive performance.
• Top Speed: 75 km/h for exhilarating rides.
• 184 ft-lb (250 Nm) Peak Torque: Provides powerful acceleration.
• Range: 75 km at 40 km/h, ideal for extended adventures.
• Simple & Quick Charging: Connect to a standard wall outlet with the included charger. Charges to 100% in approximately 3 hours.
• Easy to Handle and Maneuver: Weighs just 56 kg (123 lb) with a low seat height of 32.6″ (830 mm).
• Adjustable Off-Road Suspension: Tailored for a smooth ride on varied terrains.
• Regenerative Braking: Enhances efficiency and extends range.
• 45-Degree Climbing Angle: Tackles steep inclines with ease.

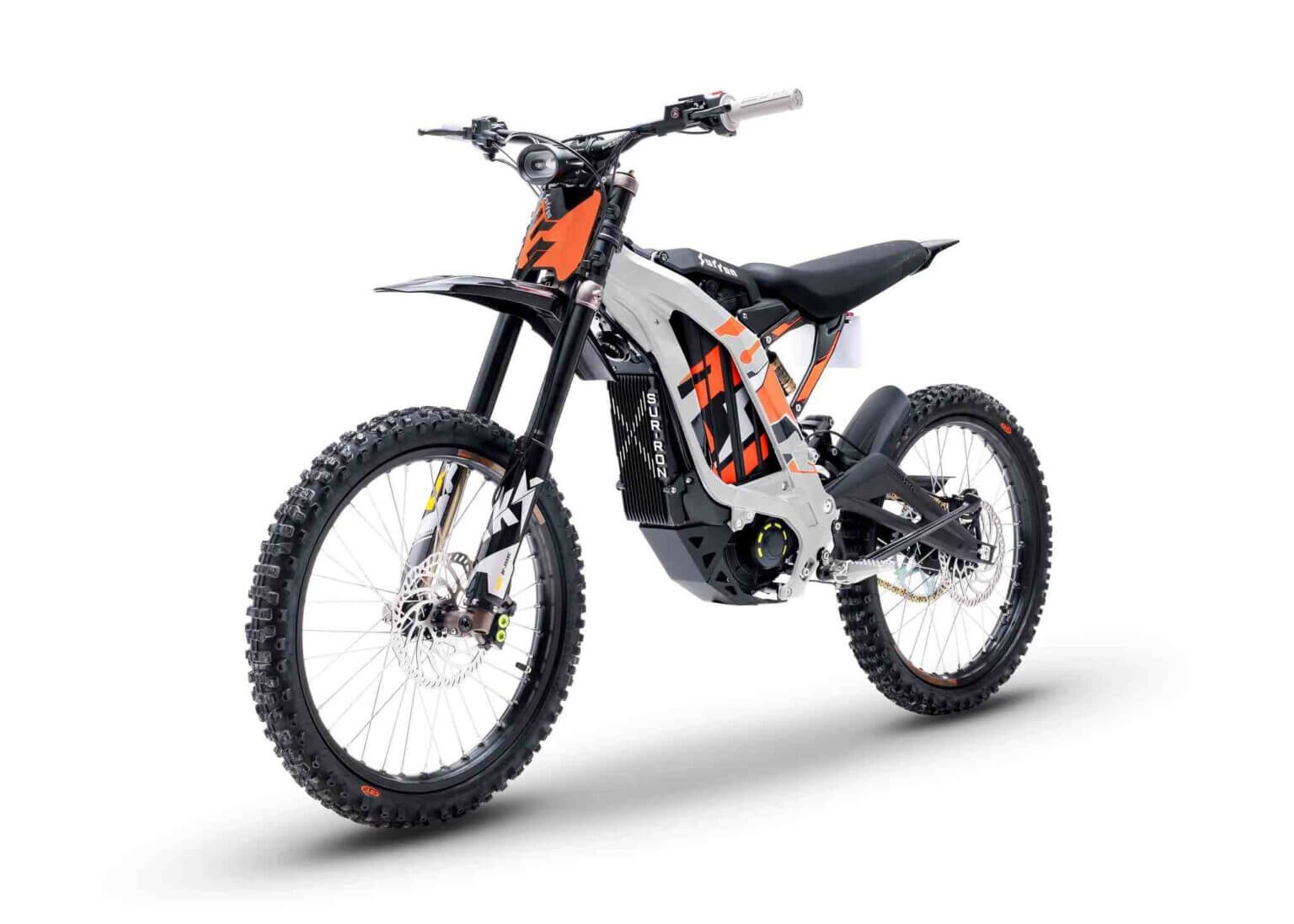

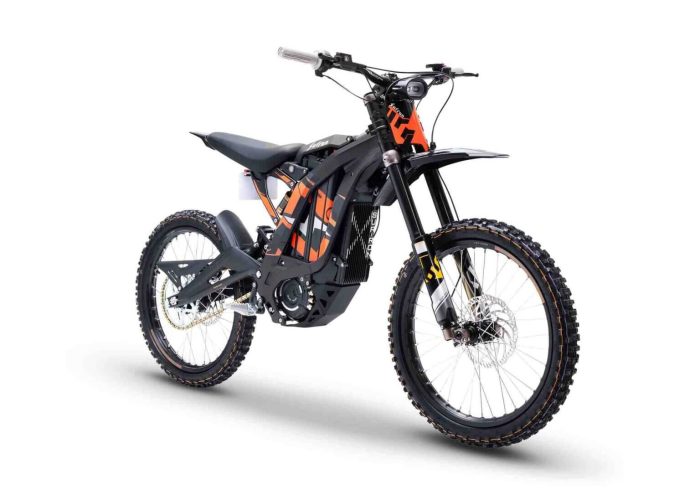

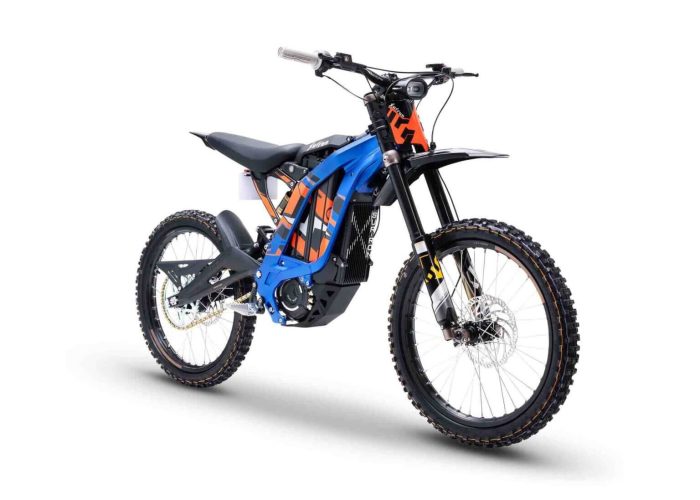

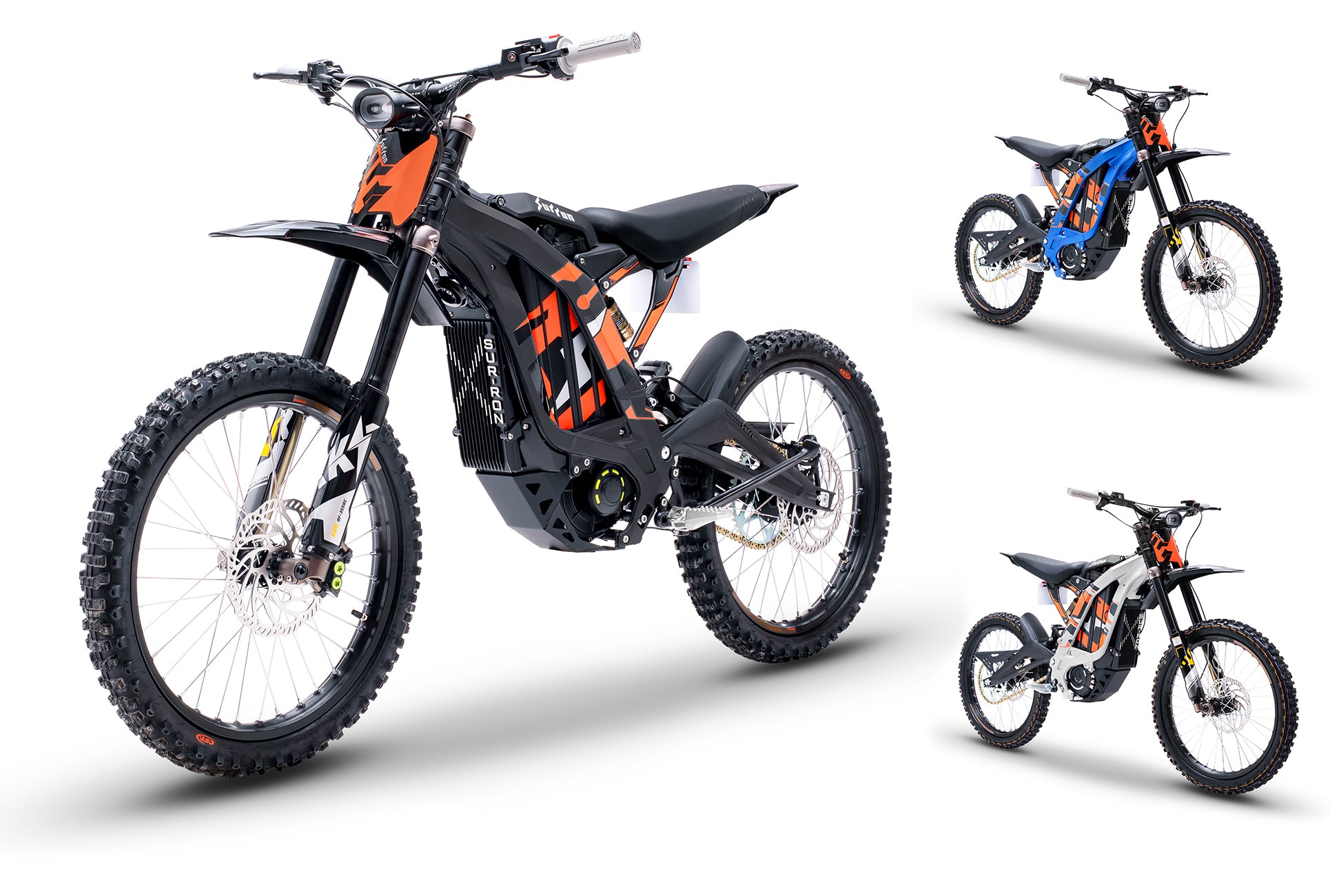

• Color Options: Available in black, blue, and silver, purple, with optional orange graphics included.



Technical Specifications

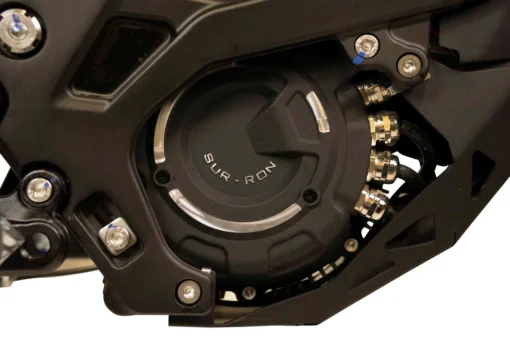

Motor

• Motor Type: PMSM
• Cooling Method: Air-Cooled

Controller

• Controller Type: X Version Sine Wave
• Power Modes: Eco and Sport

Motor Power System

• Rated Voltage: 60V (DC)
• Rated Power / Peak Power: 3,000W / 6,000W

Certificates

• Road Legal: No

Transmission

• Gear Ratio: 1:7.6
• Transmission: Primary Belt & 420 Drive Chain

Electrical Components

• Battery: 60V 40Ah Lithium Battery
• Battery Life: 500 Cycles (reduces thereafter)
• Battery Charge Indicator: Integrated LCD Display
• Charger: 10A
• Charging Time: 2.5-3.5 Hours
• USB Connection: Single USB-2.1 A Socket

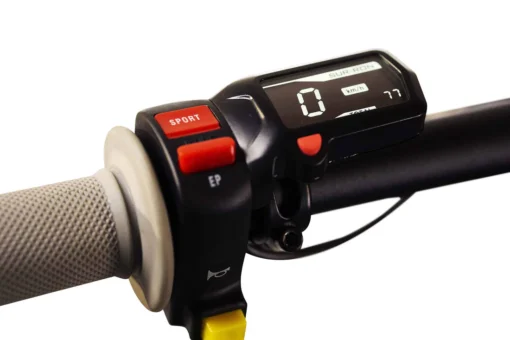

• Speedometer: LCD Digital Speedometer
• Headlight & Rear Light: LED

Vehicle

• Chassis & Swingarm: Forged Aluminum
• Front Suspension: KKE Telescopic Fork, Adjustable for Preload & Rebound
• Rear Shock Absorber: KKE with TR Intersect Link-type Suspension, Adjustable for Compression & Rebound
• Wheel Type & Size: 19 x 1.4 Wire-Spoke Wheels Front/Rear, Alloy Hubs
• Tire Size: 70/100-19 Front/Rear
• Max Range: 75 km @ 40 km/h, depending on terrain
• Net Weight: 56 kg
• Max Recommended Load: 100 kg
• Max Climbing Angle: 45 degrees
• Rear Sprocket: 48T
• Vehicle Dimensions: 1,870mm x 780mm x 1,040mm
• Minimum Ground Clearance: 270mm
• Wheelbase: 1,260mm
• Seat Height: 830 mm

IMPRESSIVE POWER-TO-WEIGHT RATIO
